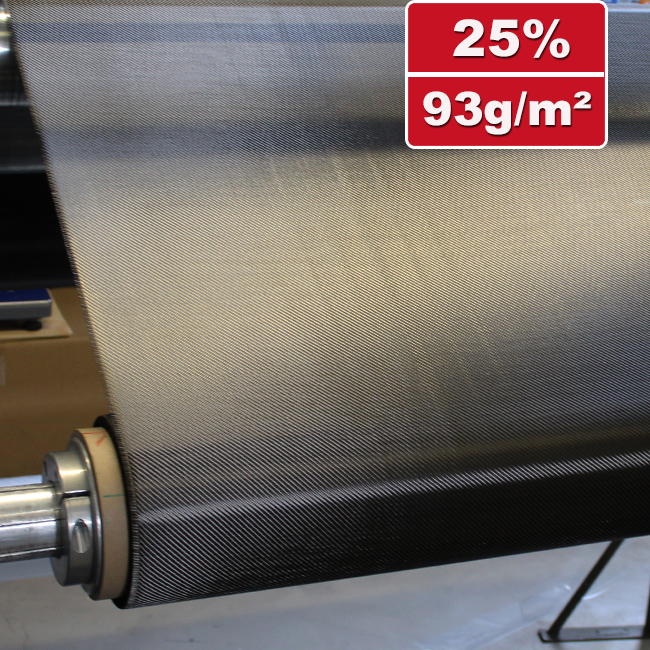

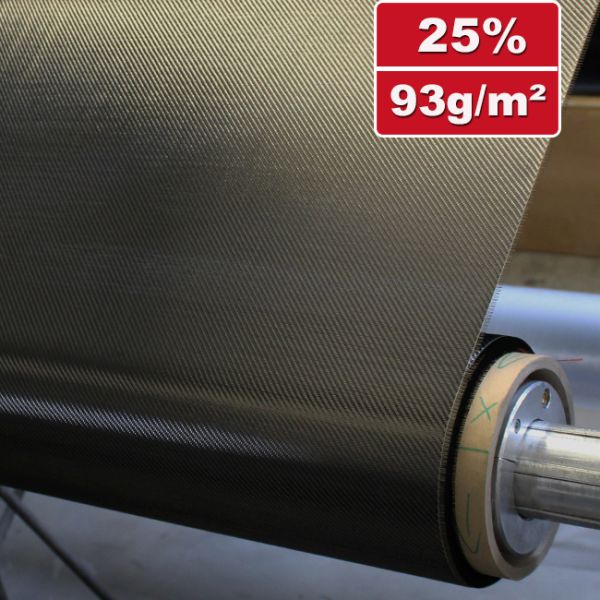

1K Carbonfiber fabric 93g/m² Twill | SP-T93C
NEW
1K Carbonfiber fabric 93g/m² Twill | SP-T93C
Technical Data
weight: 93 g/m²
Weave: Twill 2/2
width: 100 cm
Warp: 7,0 threads/cm (1K Torayca® T300B 1000-50B 67Tex)
Weft: 7,0 threads/cm (1K Torayca® T300B 1000-50B 67Tex)
Thickness: 0,13 mm
Areas of application
Calculated data for hand laminate with 35 volume percent fibres:
Resin consumption: 112 g/m²
Laminate thickness: 0,15 mm
Laminate weight: 205 g/m²
► Laminate calculator
Here you can calculate specific values for the vacuum infusion.

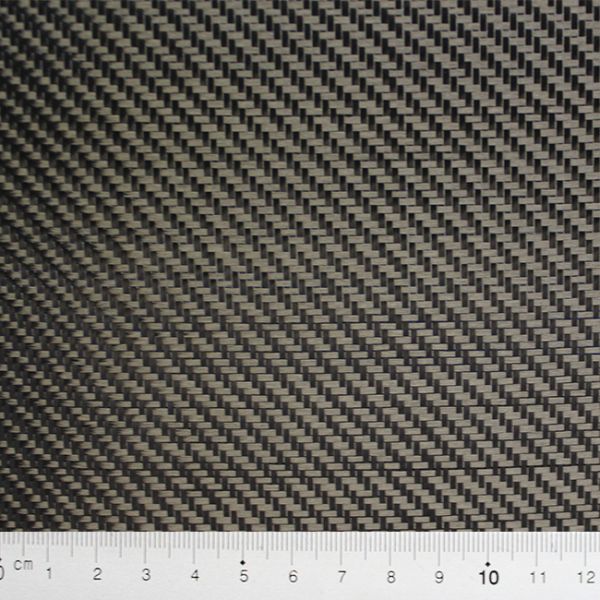

** Special items / B-grade goods from large-scale industrial production / Some items have warped selvedges **
** Please note that B-grade goods are not eligible for return or exchange **
Technical Data
weight: 93 g/m²
Weave: Twill 2/2
width: 100 cm
Warp: 7,0 threads/cm (1K Torayca® T300B 1000-50B 67Tex)
Weft: 7,0 threads/cm (1K Torayca® T300B 1000-50B 67Tex)
Thickness: 0,13 mm
Areas of application
High-strength and thin laminates, high-strength coatings and sandwich constructions, model making, sports equipment manufacturing, design applications, orthopaedic technology, ...
Calculated data for hand laminate with 35 volume percent fibres:
Resin consumption: 112 g/m²
Laminate thickness: 0,15 mm
Laminate weight: 205 g/m²
► Laminate calculator
Here you can calculate specific values for the vacuum infusion.
Working Notes:
In this instruction you will tips & tricks to produce carbon-design parts:
Carbon Coating (PDF)
Laminate Calculator:
Here you can calculate specific values for different fibers, resins and processes:
Laminate Calculator
