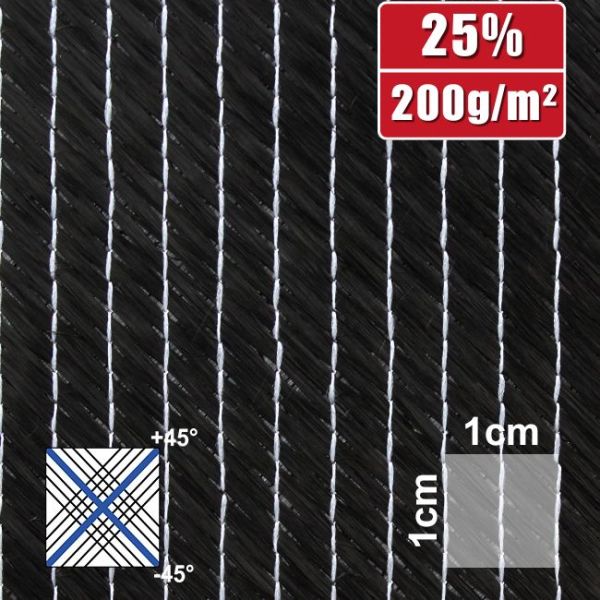

Bidiagonal Carbon fabric 12K | SP-B200C12K
Very light and good drapeable carbon fabric. Torsion layers can be laminated without cutting.
Very good quality, also suitable for visible parts!
Areas of application:
Very good quality, also suitable for visible parts!
Construction: Bidiagonal -/+45°
Weight: 200 g/m²
Width: 127 cm
Weight: 200 g/m²
Width: 127 cm
Fibre orientation:
| -45°: | 100 g/m² (Toray T700SC 50C 12K) |
| +45°: | 100 g/m² (Toray T700SC 50C 12K) |
| Stitching: | 4 g/m² (PES 33dtex) |
| Binding: | Trikot |
| Reinforcement threads in 0° direction E-glass EC9 34tex | |
Areas of application:
Carbon sight parts, modelling, sport equipment making, rotor blades, automotive industry, motor sport, orthopaedic technic ...
Calculated data for hand laminate with 40 volume percent fibres:
Resin consumption: 199 g/m²
Laminate thickness: 0,29 mm
Laminate weight: 404 g/m²
► Laminate calculator
Here you can calculate specific values for your application.
Delivery notes for this product:
The roll lengths vary! Therefore, a position measuring 10 m² or more may consist of several rolls.
Resin consumption: 199 g/m²
Laminate thickness: 0,29 mm
Laminate weight: 404 g/m²
► Laminate calculator
Here you can calculate specific values for your application.
Delivery notes for this product:The roll lengths vary! Therefore, a position measuring 10 m² or more may consist of several rolls.
Working Notes:
In this instruction you will find tips & tricks for epoxy resins and fabrics in boatbuilding:
Boatbuilding (PDF)
further working notes you will find here
Decision guidance for Epoxy Resins:
Overview Epoxy Resins (PDF)
Working Notes:
Here you can calculate specific values for different fibers, resins and processes:
Laminate Calculator
Characteristics of bidiagonal Carbonfabrics:
Bidiagonal
|
|
