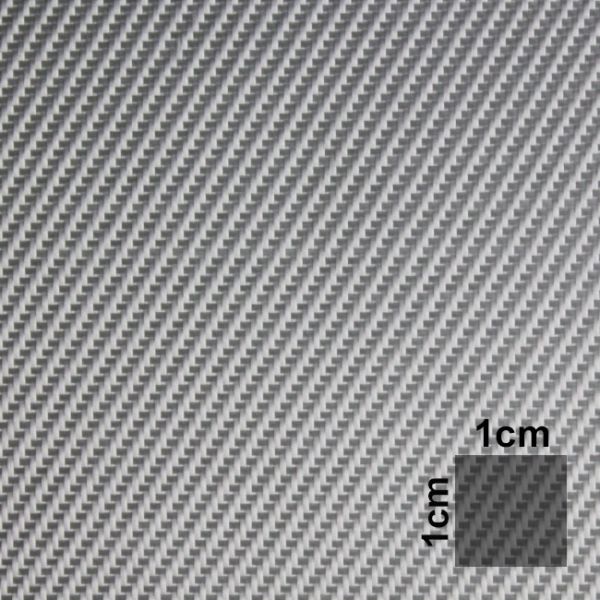

213 g/m² Glass Fabric "Silane" Twill | HP-T211E
Glass Fiber Fabric Silane Twill | HP-T211E
Weight: 213 g/m²
Weave: Twill 2/2
Sizing: Silane
Width: 120 cm
Weave: Twill 2/2
Sizing: Silane
Width: 120 cm
Yarn type specifications:
Warp: 19 y/cm (EC9-68 tex)
Warp: 19 y/cm (EC9-68 tex)
Weft: 12 y/cm (EC9-68tex)
Areas of application:
Design of models-, sport equipment, boat-, tank-, and mould making, car-parts, ...
Calculated data for hand laminate with 35 volume percent fibres:
Resin consumption: 175 g/m²
Laminate thickness: 0,23 mm
Laminate weight: 388 g/m²
► Laminate calculator
Here you can calculate specific values for the vacuum infusion.
Delivery notes for this product:
Delivery up to 2,5 m² only folded up. More than 3 m² only on roll.
Resin consumption: 175 g/m²
Laminate thickness: 0,23 mm
Laminate weight: 388 g/m²
► Laminate calculator
Here you can calculate specific values for the vacuum infusion.
Delivery notes for this product:Delivery up to 2,5 m² only folded up. More than 3 m² only on roll.
Working Notes:
In this instruction you will find tips & tricks by working with glass fiber fabrics and epoxy resins:
Boat Building (PDF)
Laminate Calculator:
Here you can calculate specific values for different fibers, resins and processes:
Laminate Calculator
Laminate Calculator
Characteristics of Glass Fabric Constructions:
Glass Fabrics are available in different constructions. The important characteristics you will find below:
Plain
|
|
Twill
|
|
Satin
|
|
