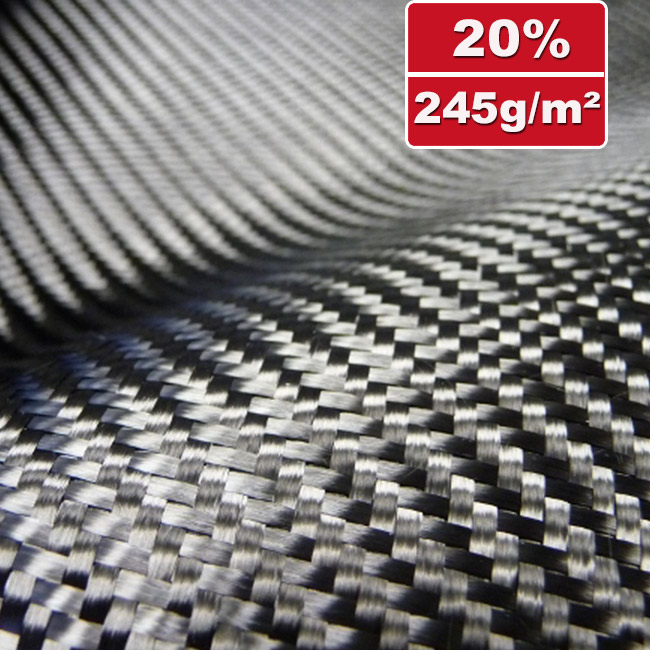

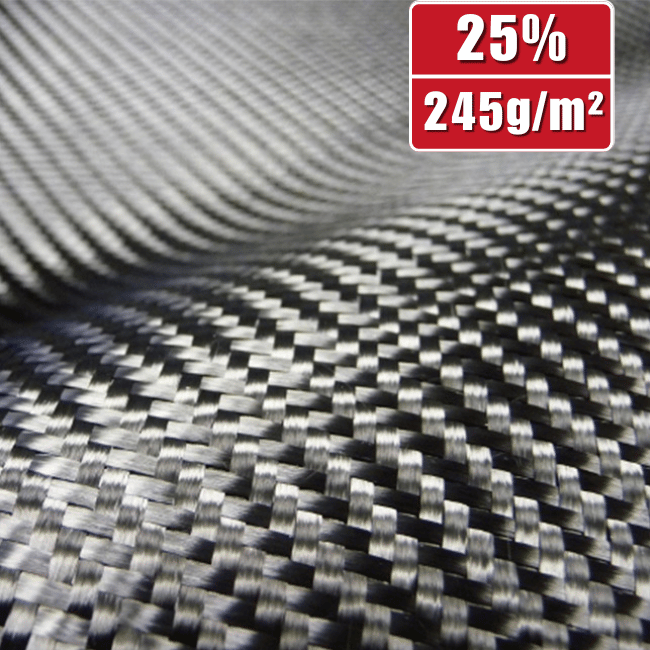

245g/m² Carbon Fabric Twill SP-T240/125C
Carbon Fabric Twill 245g/m² | SP-T240/125C
** 2nd choice with slight defects or rubbed threads. Still well suited for constructional applications / We point out that this 2nd choice is not entitled for complaint **
Technical Data
weight: 245g/m²
weave: twill 2/2
width: 125cm
warp: 6 y/cm (Hexcel AS4C 3K)
** 2nd choice with slight defects or rubbed threads. Still well suited for constructional applications / We point out that this 2nd choice is not entitled for complaint **
Technical Data
weight: 245g/m²
weave: twill 2/2
width: 125cm
warp: 6 y/cm (Hexcel AS4C 3K)
weft: 6 y/cm (Hexcel AS4C 3K)
thickness: 0,35 mm
Calculated data for hand laminate with 35 volume percent fibres
Resin consumption: 288g/m²
laminate thickness: 0,39mm
laminate weight: 528g/m²
Very suitable for our low-viscosity epoxy resin systems.
(z. B.: HP-E25D / HP-E40D / HP-E200GL / HP-E120RI / uvm.)
Areas of application
Modelling, sports equipment making, carbon design, ship and boat construction, motor sport, aircraft construction
► Laminate calculator
Here you can calculate specific values for the vacuum infusion.
*Please enter below the desired quantity in m²
Calculated data for hand laminate with 35 volume percent fibres
Resin consumption: 288g/m²
laminate thickness: 0,39mm
laminate weight: 528g/m²
Very suitable for our low-viscosity epoxy resin systems.
(z. B.: HP-E25D / HP-E40D / HP-E200GL / HP-E120RI / uvm.)
Areas of application
Modelling, sports equipment making, carbon design, ship and boat construction, motor sport, aircraft construction
► Laminate calculator
Here you can calculate specific values for the vacuum infusion.
*Please enter below the desired quantity in m²
Working Notes:
In this instruction you will tips & tricks to produce carbon-design parts:
Carbon Coating (PDF)
Laminate Calculator:
Here you can calculate specific values for different fibers, resins and processes:
Laminate Calculator
Laminate Calculator
Characteristics of Carbon Fabric Constructions:
Carbon Fabrics are available in different constructions. The important characteristics you will find below:
Plain
|
|
Twill
|
|
Satin
|
|
