310 g/m² Bidiagonal Carbonfabric, one side with PES fleece | SP-B300CPES
NEW
Bidiagonal Carbonfabric, one side with PES fleece | SP-B300CPES
** Special item from larger industrial production **

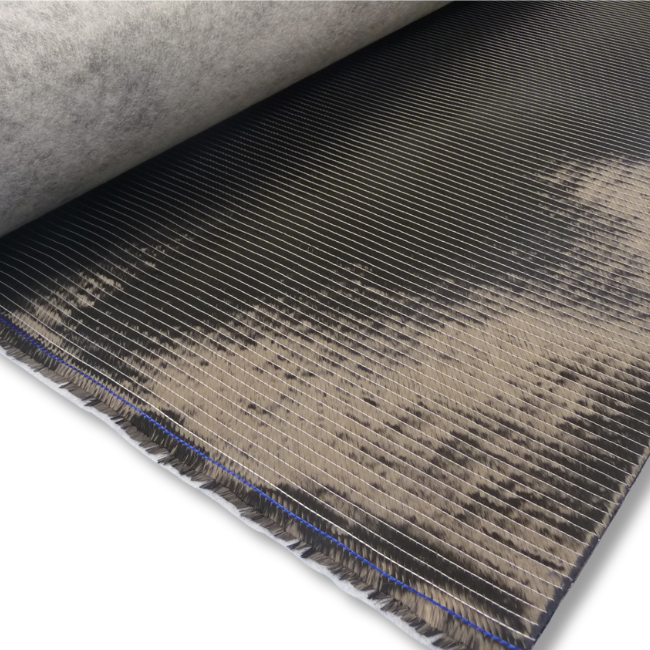

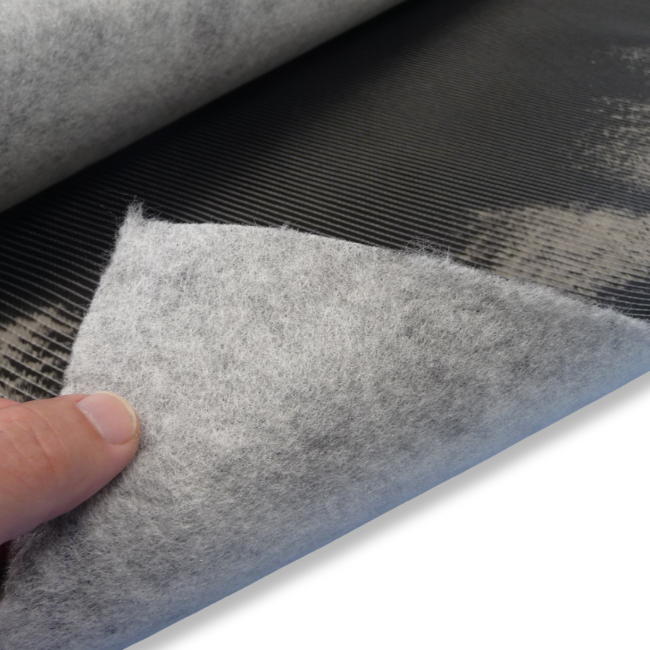

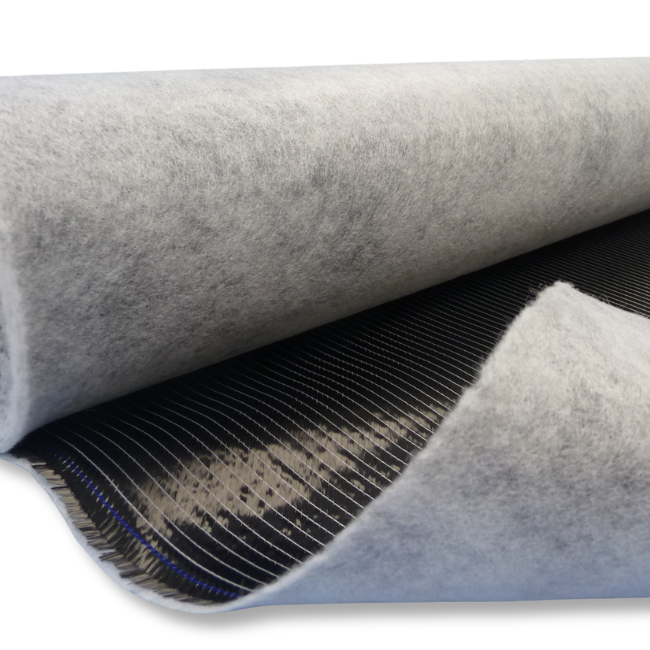

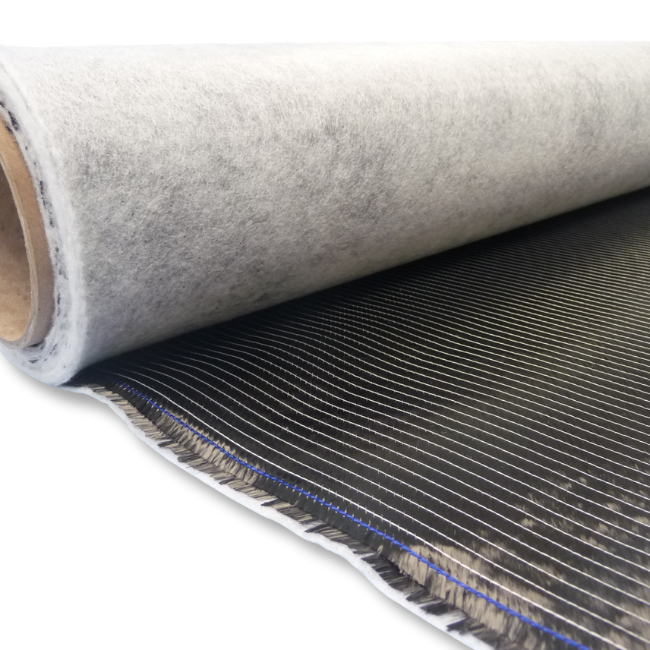

This carbon fabric is equipped with a polyester fleece on one side.
Advantages: No fraying or shifting when cutting to size

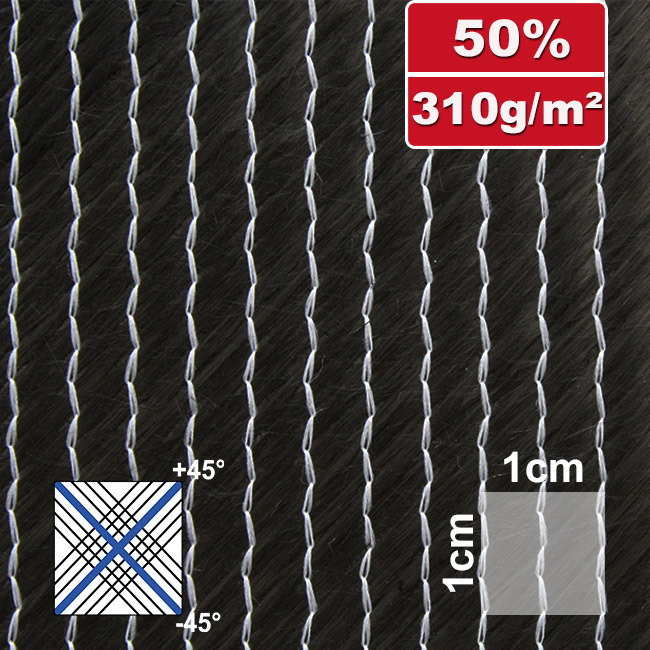

Construction: Bidiagonal +/-45°
Weight: ca. 310g/m² + 50g/m² PES fleece
Width: 127 cm
Produced with: HT-Fibre
This carbon fabric is equipped with a polyester fleece on one side.
Advantages: No fraying or shifting when cutting to size
Construction: Bidiagonal +/-45°
Weight: ca. 310g/m² + 50g/m² PES fleece
Width: 127 cm
Produced with: HT-Fibre
Fibre orientation:
| +45°: | 153 g/m² (HT-Faser Tenax HTS45 E23 12K) |
| -45°: | 153 g/m² (HT-Faser Tenax HTS45 E23 12K) |
| Stitching /-type: | 6 g/m²(PES 76 dtex) / Pillar |
| PES fleece: | 50 g/m² |
| Total areal weight: | 362 g/m² |
Advantages
- Optimum component properties (with an almost unbeatable price-performance ratio)
- Very closed fabric appearance, also suitable for visible parts
- Even weight distribution, no fiber curvature as with woven fabric
- Ideal for components with a very high fiber volume content
Areas of application:
Modelling, sport equipment making, ship and boat construction, rotor blades, automotive industry, motor sport, orthopaedic technic ...
► Laminate calculator
Here you can calculate specific values for your application.
Delivery notes for this product:
The length of the rolls may vary. Therefore it is possible that a position from 10m² consists of several rolls.
► Laminate calculator
Here you can calculate specific values for your application.
Delivery notes for this product:The length of the rolls may vary. Therefore it is possible that a position from 10m² consists of several rolls.
Working Notes:
In this instruction you will find tips & tricks for epoxy resins and fabrics in boatbuilding:
Boatbuilding (PDF)
further working notes you will find here
Decision guidance for Epoxy Resins:
Overview Epoxy Resins (PDF)
Working Notes:
Here you can calculate specific values for different fibers, resins and processes:
Laminate Calculator
Characteristics of bidiagonal Carbonfabrics:
Bidiagonal
|
|
Product Safety (GPSR):
Here you will find information for the safe use of carbon fibres:
Product information for safe handling (PDF)
Here you will find information for the safe use of carbon fibres:
Product information for safe handling (PDF)
