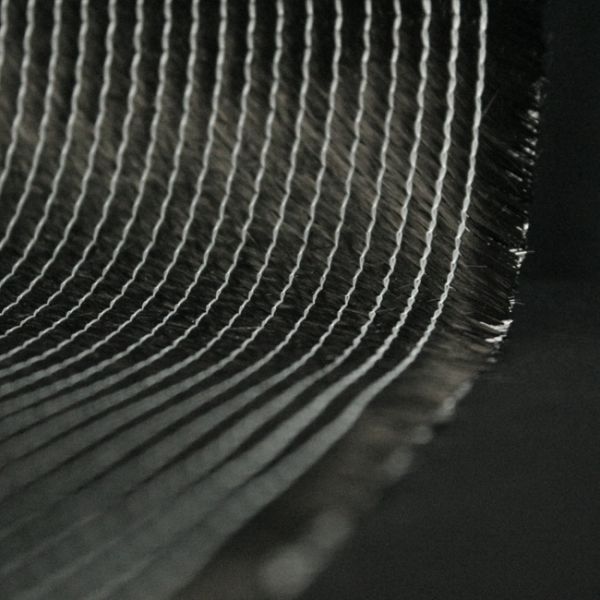

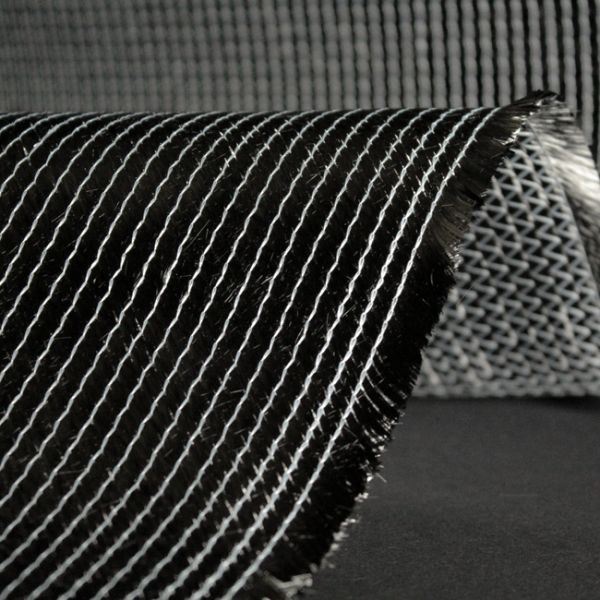

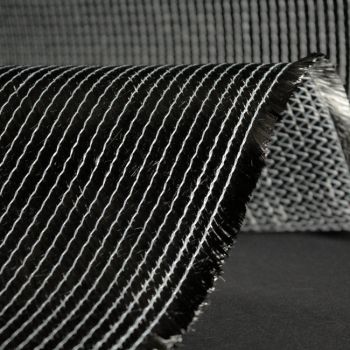

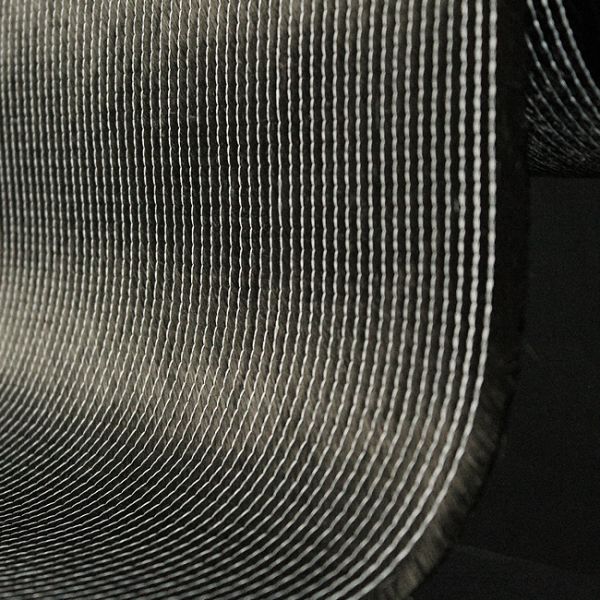

300 g/m² Triaxial Carbonfabric | HP-T300C
300 g/m² Triaxial Carbonfabric | HP-T300C
Construction: Traxial +45°/-45°/0°
** The length of the rolls may vary. Therefore it is possible that a position from 10m² consists of several rolls. **
Areas of application:
Weight: 300 g/m²
Width: 127 cm
Width: 127 cm
Fibre orientation:
| +45°: | 100 g/m² (HT-fibre 50K) |
| -45°: | 100 g/m² (HT-fibre 50K) |
| 0°: | 100 g/m² (HT-fibre 50K) |
| Stitching /-type: | 5 g/m² (PES) pillar |
| Total areal weight: | 305 g/m² |
** The length of the rolls may vary. Therefore it is possible that a position from 10m² consists of several rolls. **
Advantages of Carbonfabric HP-T300C:
- Thickness and weight over the whole fabric´s width is constant
- The surface of filaments are smooth, therefore the fabric is very handy to process
- All filaments are strictly parallel, not twisted to the right or left
- All filaments are sufficiently strained, therefore the final product have a good physical-mechanical
Areas of application:
Aircraft construction, sport equipment making, ship and boat construction, motor sport, wind energy, ...
Calculated data for hand laminate with 35 volume percent fibres:
Resin consumption: 360 g/m²
Laminate thickness: 0,48 mm
Laminate weight: 660 g/m²
► Laminate calculator
Here you can calculate specific values for your application.
Delivery notes for this product:

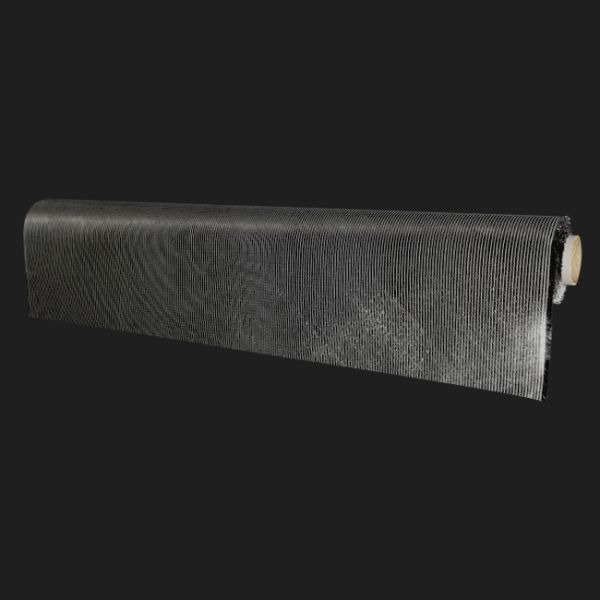

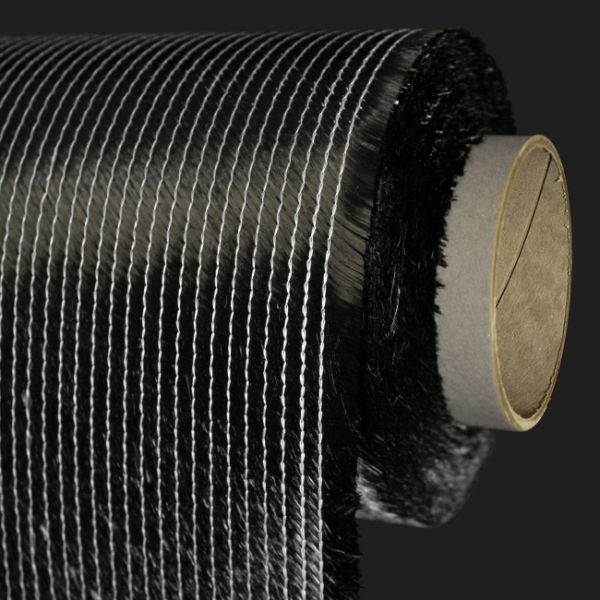

Standard role length: 63,5 m² / From 64 m² then the total quantity are on minimum 2 roles.
Resin consumption: 360 g/m²
Laminate thickness: 0,48 mm
Laminate weight: 660 g/m²
► Laminate calculator
Here you can calculate specific values for your application.
Delivery notes for this product:Standard role length: 63,5 m² / From 64 m² then the total quantity are on minimum 2 roles.
Working Notes:
In this instruction you will find tips & tricks for epoxy resins and fabrics in boatbuilding:
Boatbuilding (PDF)
further working notes you will find here
Decision guidance for Epoxy Resins:
Overview Epoxy Resins (PDF)
Working Notes:
Here you can calculate specific values for different fibers, resins and processes:
Laminate Calculator
Characteristics of triaxial Carbonfabrics:
Triaxial
|
|
Product Safety (GPSR):
Here you will find information for the safe use of carbon fibres:
Product information for safe handling (PDF)
Here you will find information for the safe use of carbon fibres:
Product information for safe handling (PDF)
