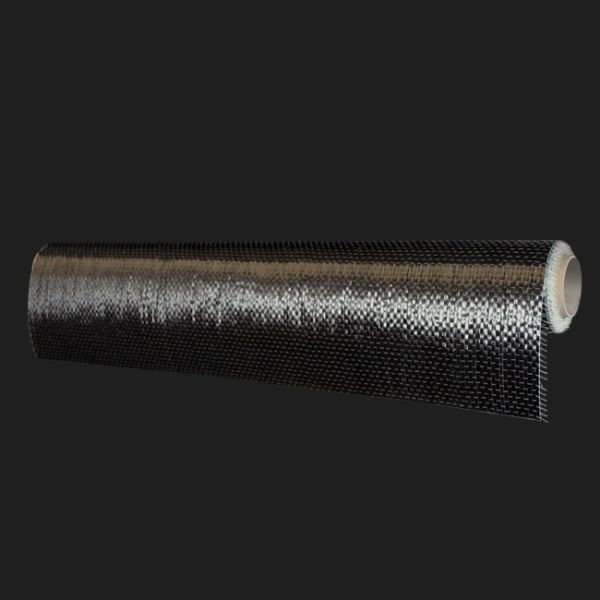

315 g/m² Unidirectional Carbonfabric | HP-U315C
315 g/m² Unidirectional Carbonfabric | HP-U315C
Weight: 315 g/m²
Weave: Plain
Width: 100 cm
Weave: Plain
Width: 100 cm

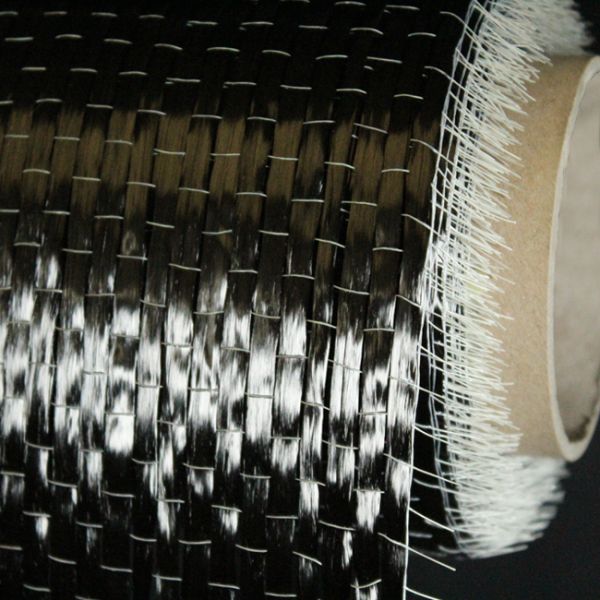

Yarn type specifications:
Warp: 3,65 Fd/cm (12K Hyosung H2250 800Tex
Warp: 3,65 Fd/cm (12K Hyosung H2250 800Tex
Weft: 1,0 Fd/cm (E-Glas Hotmelt)
Areas of application:
Modelling, sport equipment making, ship and boat construction, motor sport, carbon design, orthopaedic technic, ...
Calculated data for hand laminate with 35 volume percent fibres:
Resin consumption: 240 g/m²
Laminate thickness: 0,32 mm
Laminate weight: 440 g/m²
► Laminate calculator
Here you can calculate specific values for the vacuum infusion.
** The length of the rolls may vary. Therefore it is possible that a position from 10m² consists of several rolls. **
Resin consumption: 240 g/m²
Laminate thickness: 0,32 mm
Laminate weight: 440 g/m²
► Laminate calculator
Here you can calculate specific values for the vacuum infusion.
** The length of the rolls may vary. Therefore it is possible that a position from 10m² consists of several rolls. **
Working Notes:
In this instruction you will find tips & tricks to produce carbon-design parts:
Carbon Coating (PDF)
Twill
Satin
In this instruction you will find tips & tricks to produce carbon-design parts:
Carbon Coating (PDF)
Laminate Calculator:
Here you can calculate specific values for different fibers, resins and processes:
Laminate Calculator
Laminate Calculator
Characteristics of Carbon Fabric Constructions:
Carbon Fabrics are available in different constructions. The important characteristics you will find below:
Plain
|
|
Twill
|
|
Satin
|
|
