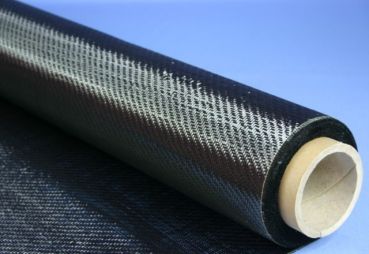

160 g/m² Carbon Fabric Twill | HP-T160C

Mobile Preview: Carbon Fabric 160 g/m² Twill | HP-T160C

Mobile Preview: Carbon Fabric 160 g/m² Twill

160 g/m² Carbon Fabric Twill | HP-T160C

Product No.:: HP-T160C
Shipping time:: ca. 1-3 days (abroad may vary)
Stock:: m²

Sliding scale prices

1-2,5 m²: per 23,50 EUR
3-4,5 m²: per 22,49 EUR
5-9,5 m²: per 21,30 EUR
10-24,5 m²: per 19,98 EUR
25-49,5 m²: per 18,98 EUR
50-99,5 m²: per 16,96 EUR
> 99,5 m²: per 16,24 EUR

23,50 EUR

incl. 19% tax excl. Shipping costs

Description

Carbon Fiber Fabric Twill | HP-T160C

Weight: 160 g/m²
Weave: Twill 2/2
Width: 100 cm

Yarn type specifications:
Warp: 4 y/cm (3K 200Tex)

Weft: 4 y/cm (3K 200Tex)

Thickness: 0,30 mm
Yarn: AS4C-GP 3K Hexcel

** The length of the rolls may vary. Therefore it is possible that a position from 10 m² consists of several rolls. **

Areas of application:

Modelling, sport equipment making, ship and boat construction, motor sport, orthopaedic technic, ...

Calculated data for hand laminate with 35 volume percent fibres:
Resin consumption: 192 g/m²
Laminate thickness: 0,26 mm
Laminate weight: 352 g/m²

► Laminate calculator
Here you can calculate specific values for the vacuum infusion.

Working Notes & Support

Working Notes:
In this instruction you will find tips & tricks to produce carbon-design parts:
Carbon Coating (PDF)

Laminate Calculator:

Here you can calculate specific values for different fibers, resins and processes:
Laminate Calculator

Characteristics of Carbon Fabric Constructions:

Carbon Fabrics are available in different constructions. The important characteristics you will find below:

Plain

The simplest weave
Very slip-resistant
Bad drapability
Suitable for flat plates or easy moulds

Twill

Diagonally running lines are characteristic
Better drapability than plain weave
Less slip-resistant
Suitable for complicated geometries

Satin

Suitable for complicated geometries
Very good drapability
Low slip-resistance
Less mesh crossing, therefore strength in the laminate
Leaves a very smooth surface

Product Safety

Product Safety (GPSR):
Here you will find information for the safe use of carbon fibres:
Product information for safe handling (PDF)
