200 g/m² Carbon Fabric Plain | HP-P200/125C

Mobile Preview: Carbon Fabric 200g/m² Plain

200 g/m² Carbon Fabric Plain | HP-P200/125C

Product No.:: HP-P200/125C
Shipping time:: ca. 1-3 days (abroad may vary)
Stock:: m²

Sliding scale prices

1-2,5 m²: per 27,89 EUR
3-4,5 m²: per 25,99 EUR
5-9,5 m²: per 24,69 EUR
10-24,5 m²: per 23,50 EUR
25-49,5 m²: per 21,90 EUR
50-124,5 m²: per 19,85 EUR
> 124,5 m²: per 18,98 EUR

27,89 EUR

incl. 19% tax excl. Shipping costs

Description

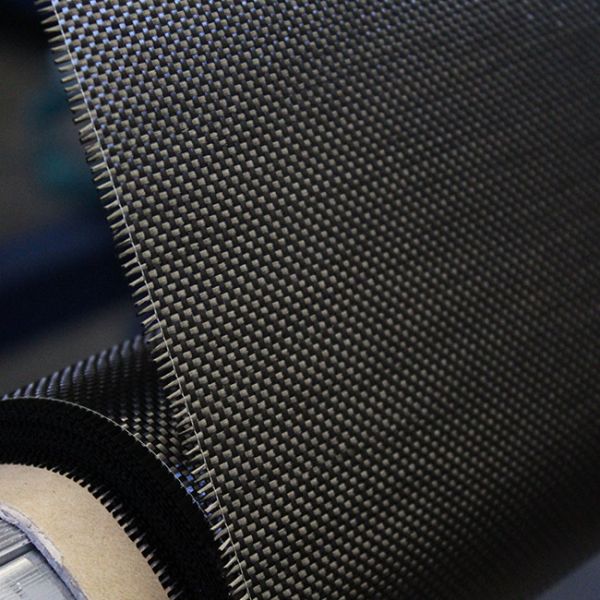

Carbon Fiber Fabric Plain | HP-P200/125C

Weight: 200 g/m²
Weave: Plain
Width: 125 cm

Yarn type specifications:
Warp: 5 y/cm (3K Mitsubishi Pyrofil)

Weft: 5 y/cm (3K Mitsubishi Pyrofil)

Thickness: 0,33 mm

Areas of application:

Modelling, sports equipment making, carbon-design, ship and boat construction, motor sport, orthopaedic technic, ...

Calculated data for hand laminate with 35 volume percent fibres:
Resin consumption: 240 g/m²
Laminate thickness: 0,33 mm
Laminate weight: 440 g/m²

► Laminate calculator
Here you can calculate specific values for the vacuum infusion.

** The length of the rolls may vary. Therefore it is possible that a position from 10m² consists of several rolls. **

Working Notes & Support

Working Notes:
In this instruction you will find tips & tricks to produce carbon-design parts:
Carbon Coating (PDF)

Laminate Calculator:

Here you can calculate specific values for different fibers, resins and processes:
Laminate Calculator

Characteristics of Carbon Fabric Constructions:

Carbon Fabrics are available in different constructions. The important characteristics you will find below:

Plain

The simplest weave
Very slip-resistant
Bad drapability
Suitable for flat plates or easy moulds

Twill

Diagonally running lines are characteristic
Better drapability than plain weave
Less slip-resistant
Suitable for complicated geometries

Satin

Suitable for complicated geometries
Very good drapability
Low slip-resistance
Less mesh crossing, therefore strength in the laminate
Leaves a very smooth surface

Product Safety

Product Safety (GPSR):
Here you will find information for the safe use of carbon fibres:
Product information for safe handling (PDF)
