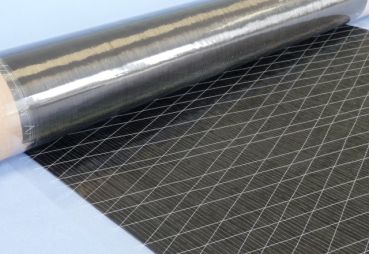

150 g/m² Unidirectional Carbonfabric | HP-U150/50C
150 g/m² Unidirectional Carbonfabric | HP-U150/50C
Construction: 0°
Weight: 150 g/m²
Width: 50 cm
Weight: 150 g/m²
Width: 50 cm
Fibre orientation:
| 0°: | 150 g/m² (HT-Fibre 50K) |
| Scrim: | 3,5 g/m² (PES) |
Advantages of Carbonfabric HP-U150/50C:
- Thickness and weight over the whole fabric´s width is constant
- The surface of filaments are smooth, therefore the fabric is very handy to process
- All filaments are strictly parallel, not twisted to the right or left
- All filaments are sufficiently strained, therefore the final product have a good physical-mechanical
Areas of application:
Modelling, sport equipment making, ship and boat construction, motor sport, orthopaedic technic ...
Calculated data for hand laminate with 45 volume percent fibres:
Resin consumption: 118 g/m²
Laminate thickness: 0,19 mm
Laminate weight: 268 g/m²
► Laminate calculator
Here you can calculate specific values for your application.
Delivery notes for this product:
The running lengths of the rolls vary! It is therefore possible that an item of 10m² or more consists of several rolls.
Resin consumption: 118 g/m²
Laminate thickness: 0,19 mm
Laminate weight: 268 g/m²
► Laminate calculator
Here you can calculate specific values for your application.
Delivery notes for this product:The running lengths of the rolls vary! It is therefore possible that an item of 10m² or more consists of several rolls.
Working Notes:
In this instruction you will find tips & tricks for epoxy resins and fabrics in boatbuilding:
Boatbuilding (PDF)
further working notes you will find here
Decision guidance for Epoxy Resins:
Overview Epoxy Resins (PDF)
Working Notes:
Here you can calculate specific values for different fibers, resins and processes:
Laminate Calculator
Characteristics of unidirectional Carbonfabrics (0°):
Unidirectional
|
|
Product Safety (GPSR):
Here you will find information for the safe use of carbon fibres:
Product information for safe handling (PDF)
Here you will find information for the safe use of carbon fibres:
Product information for safe handling (PDF)
