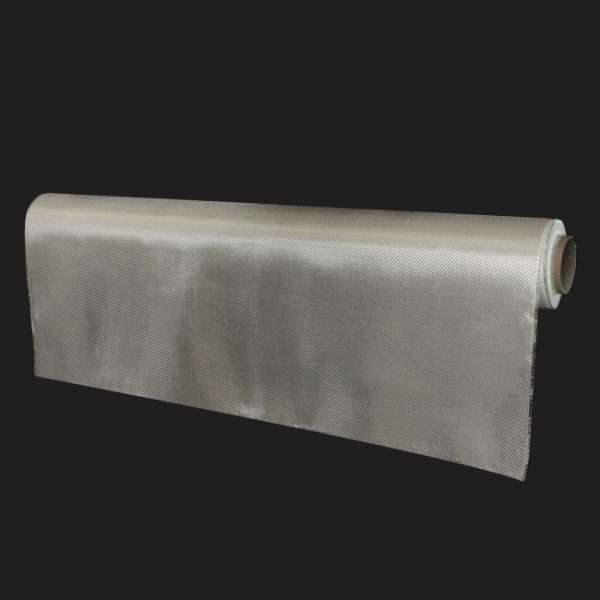

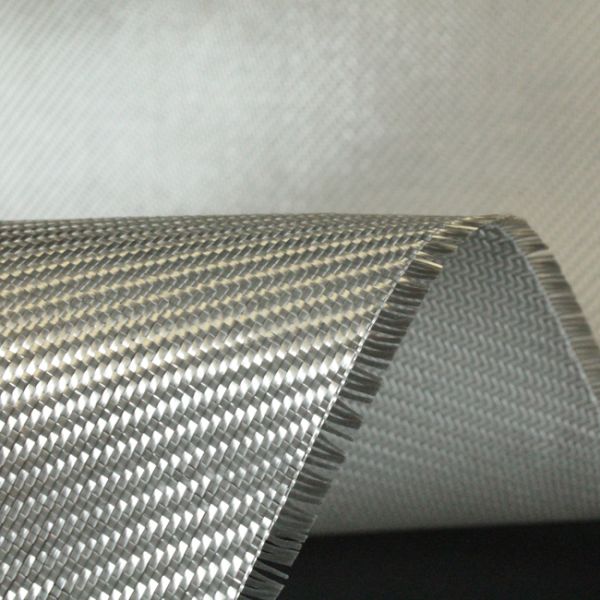

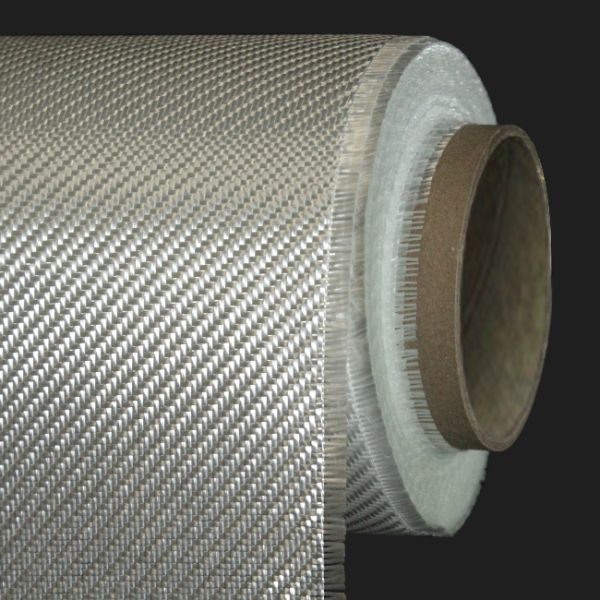

280 g/m² Glass Fabric "Finish" Twill | HP-T280EF
Glass Fiber Fabric Finish Twill | HP-T280EF
Weight: 280 g/m²
Weave: Twill 2/2
Sizing: Finish
Width: 100 cm
Weave: Twill 2/2
Sizing: Finish
Width: 100 cm
Yarn type specifications:
Warp: 7 y/cm (3x EC9-68 tex)
Warp: 7 y/cm (3x EC9-68 tex)
Weft: 7 y/cm (EC11-204 tex)
Areas of application:
Design of models-, sport equipment, boat-, tank- and mould construction, car-parts, ...
Calculated data for hand laminate with 35 volume percent fibres:
Resin consumption: 232 g/m²
Laminate thickness: 0,31 mm
Laminate weight: 514 g/m²
► Laminate calculator
Here you can calculate specific values for the vacuum infusion.
Delivery notes for this product:
Delivery up to 2,5 m² only folded up. More than 3 m² only on roll.
Resin consumption: 232 g/m²
Laminate thickness: 0,31 mm
Laminate weight: 514 g/m²
► Laminate calculator
Here you can calculate specific values for the vacuum infusion.
Delivery notes for this product:Delivery up to 2,5 m² only folded up. More than 3 m² only on roll.
Working Notes:
In this instruction you will find tips & tricks by working with glass fiber fabrics and epoxy resins:
Boat Building (PDF)
Laminate Calculator:
Here you can calculate specific values for different fibers, resins and processes:
Laminate Calculator
Laminate Calculator
Characteristics of Glass Fabric Constructions:
Glass Fabrics are available in different constructions. The important characteristics you will find below:
Plain
|
|
Twill
|
|
Satin
|
|
Product Safety (GPSR):
Here you will find information for the safe use of glass fibres:
Product information for safe handling (PDF)
Here you will find information for the safe use of glass fibres:
Product information for safe handling (PDF)
