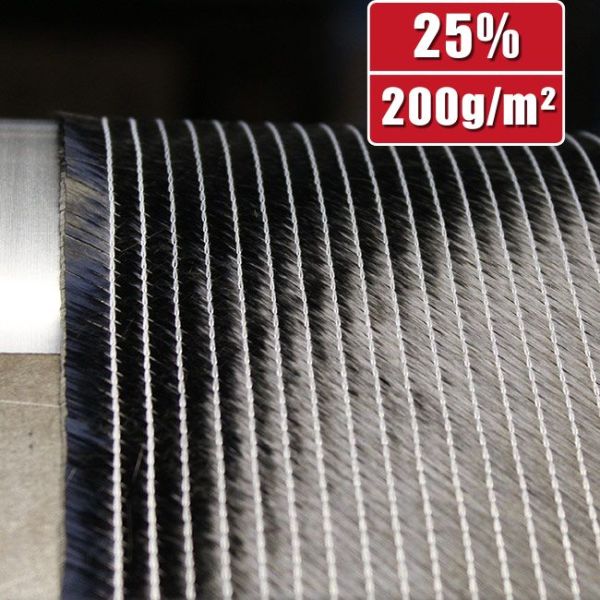

40cm - 200g/m² Bidiagonal carbon fabric SP-B200/40C
_2952_0.jpg "59cm - 200g/m² Bidiagonal carbon fabric HP-B200/59C")
40cm - 200g/m² Bidiagonal carbon fabric SP-B200/40C
Bidiagonal carbon fabric tape
weight: 214 g/m²
width: 40 cm
+45° 100 g/m² HT-Fibre 50K
Thread scrim 9 g/m²
- 45° 100 g/m² HT-Fibre 50K
Advantages of carbon scrims
- easy handling and optimal mechanical properties
- high quality surface
- ideal for components with a very high fiber volume
Calculated data for hand laminate with 35 volume percent fibres
Resin consumption: 256 g/m²
laminate thickness: 0,34 mm
laminate weight: 470 g/m²
Areas of application
wind energy, sports equipment making, ship and boat construction, motor sport, aircraft construction
**Special item from larger industrial production, good quality.**
**The length of the rolls may vary. Therefore it is possible that a position consists of several rolls.**
weight: 214 g/m²
width: 40 cm
+45° 100 g/m² HT-Fibre 50K
Thread scrim 9 g/m²
- 45° 100 g/m² HT-Fibre 50K
Advantages of carbon scrims
- easy handling and optimal mechanical properties
- high quality surface
- ideal for components with a very high fiber volume
Calculated data for hand laminate with 35 volume percent fibres
Resin consumption: 256 g/m²
laminate thickness: 0,34 mm
laminate weight: 470 g/m²
Areas of application
wind energy, sports equipment making, ship and boat construction, motor sport, aircraft construction
**Special item from larger industrial production, good quality.**
**The length of the rolls may vary. Therefore it is possible that a position consists of several rolls.**
Working Notes:
In this instruction you will find tips & tricks for epoxy resins and fabrics in boatbuilding:
Boatbuilding (PDF)
further working notes you will find here
Decision guidance for Epoxy Resins:
Overview Epoxy Resins (PDF)
Working Notes:
Here you can calculate specific values for different fibers, resins and processes:
Laminate Calculator
Characteristics of bidiagonal Carbonfabrics:
Bidiagonal
|
|
Product Safety (GPSR):
Here you will find information for the safe use of carbon fibres:
Product information for safe handling (PDF)
Here you will find information for the safe use of carbon fibres:
Product information for safe handling (PDF)
