245 g/m² Carbon Fabric "slippage-resistant" Twill | HP-T240/150CE
Carbon Fiber Fabric "slippage-resistant" Twill | HP-T240/150CE

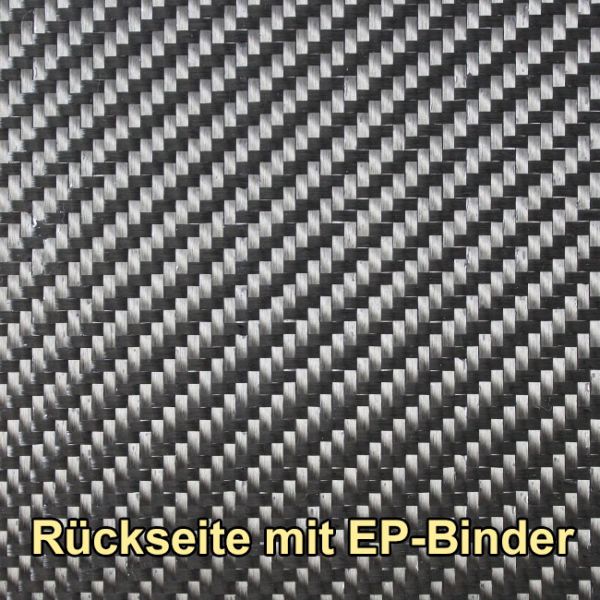

This Carbon Fabric is one-sided fixed with an EP-binder (approx. 5 - 10 g/m²).Benefit:
► No fraying when cutting
► Fabric is heat-formable
Particularly good quality for design and visible part applications.
Due to its width, it is also very suitable for large components such as hoods.
Weight: 245 g/m²

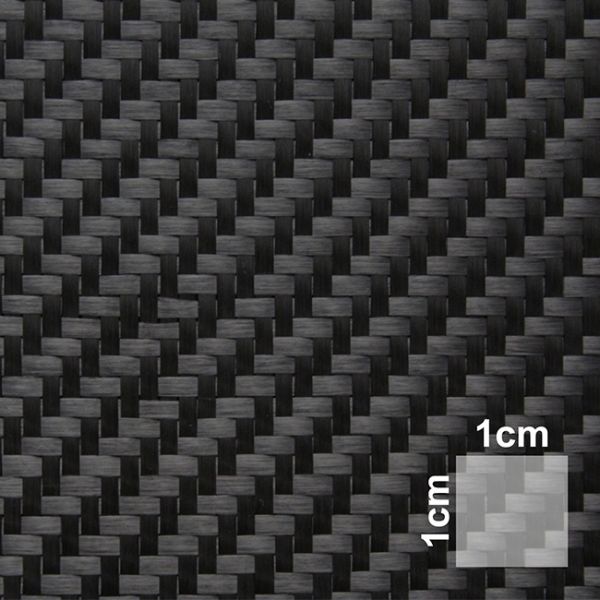

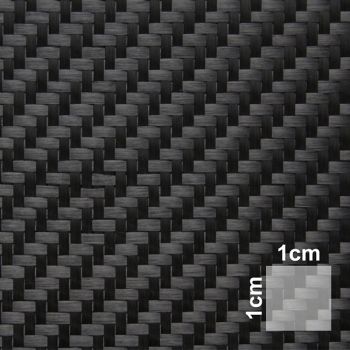

Weave: Twill 2/2
Width: 150 cm
Yarn: 3K Toray FT300B
Weave: Twill 2/2
Width: 150 cm
Yarn: 3K Toray FT300B
Yarn type specifications:
Warp: 6 y/cm (3K 200Tex)
Warp: 6 y/cm (3K 200Tex)
Weft: 6 y/cm (3K 200Tex)
Thickness: 0,35 mm

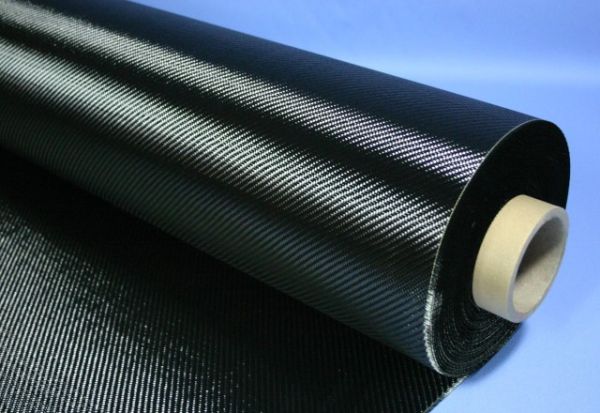

** The length of the rolls may vary. Therefore it is possible that a position from 10m² consists of several rolls. **
** The length of the rolls may vary. Therefore it is possible that a position from 10m² consists of several rolls. **
Areas of application:
Modelling, sport equipment making, ship and boat construction, motor sport, carbon design, aircraft construction, orthopaedic technic, ...
Calculated data for hand laminate with 35 volume percent fibres:
Resin consumption: 288 g/m²
Laminate thickness: 0,39 mm
Laminate weight: 528 g/m²
** The length of the rolls may vary. Therefore it is possible that a position of 10m² or more consists of several rolls. **
► Laminate calculator
Here you can calculate specific values for the vacuum infusion.
Resin consumption: 288 g/m²
Laminate thickness: 0,39 mm
Laminate weight: 528 g/m²
** The length of the rolls may vary. Therefore it is possible that a position of 10m² or more consists of several rolls. **
► Laminate calculator
Here you can calculate specific values for the vacuum infusion.
Working Notes:
In this instruction you will tips & tricks to produce carbon-design parts:
Carbon Coating (PDF)
Laminate Calculator:
Here you can calculate specific values for different fibers, resins and processes:
Laminate Calculator
Laminate Calculator
Characteristics of Carbon Fabric Constructions:
Carbon Fabrics are available in different constructions. The important characteristics you will find below:
Plain
|
|
Twill
|
|
Satin
|
|
Product Safety (GPSR):
Here you will find information for the safe use of carbon fibres:
Product information for safe handling (PDF)
Here you will find information for the safe use of carbon fibres:
Product information for safe handling (PDF)
