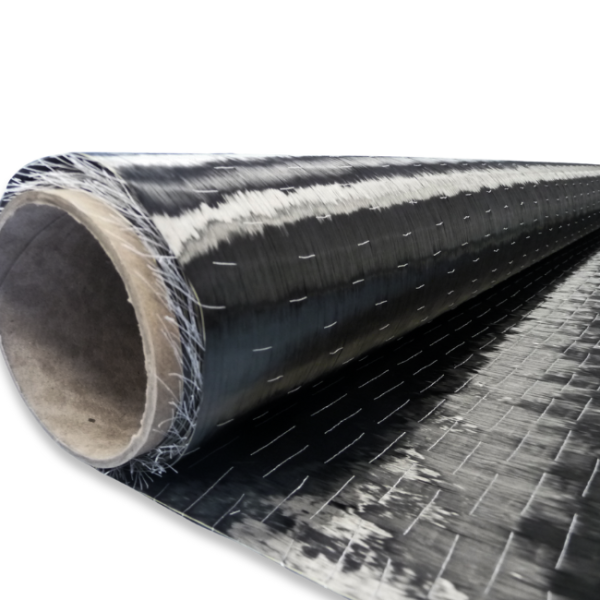

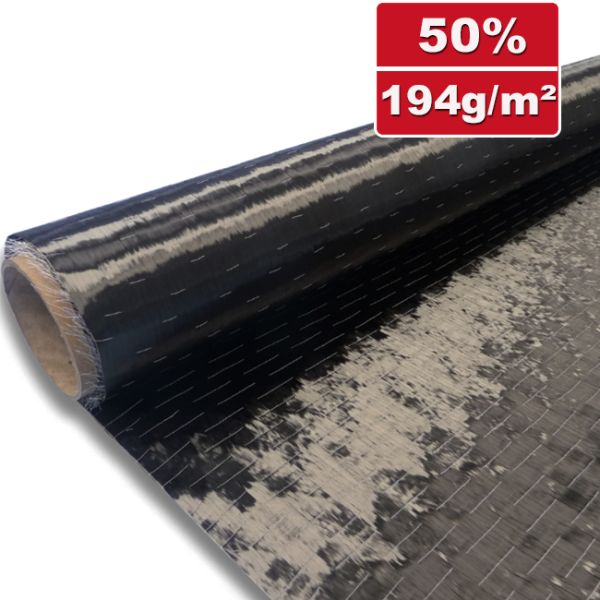

194 g/m² Unidirectional 0° carbon fabric 12K HT fiber spread | SP-U194C
.jpg "Unidirectional Carbonfabric")
194 g/m² Unidirectional 0° carbon fabric 12K HT fiber spread | SP-U194C
** Special item from bigger industrial production **
Advantages of unidirectional carbon fabric with slide bonding
This lightweight carbon UD fabric offers a particularly homogeneous surface with maximum weight savings. Due to the alignment and spread of the carbon fibers in the 0° direction, this fabric is particularly suitable for components that are subjected to bending loads in the longitudinal direction. Fabrics with a lower basis weight naturally also have a lower waviness, as the warp and weft are very thin. They exhibit higher strength than fabrics with a high basis weight.

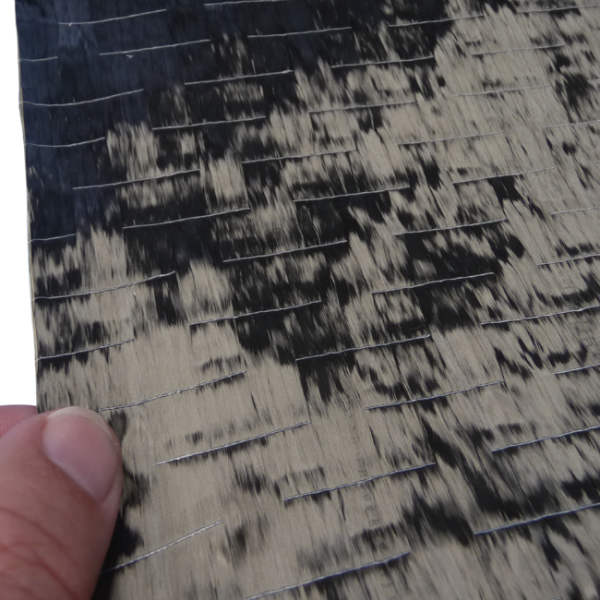

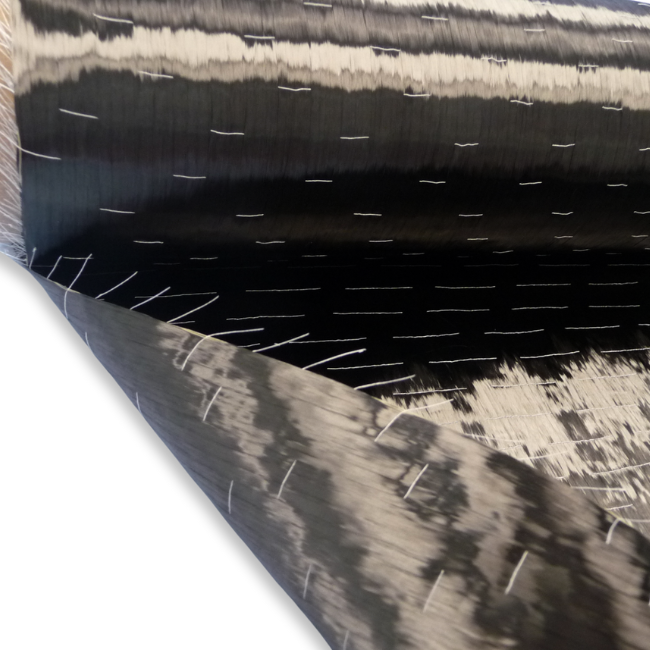

The copolyamide thread in the weft direction additionally fixes this UD carbon fabric and makes it easier to cut and process.
Construction:
Advantages of unidirectional carbon fabric with slide bonding
This lightweight carbon UD fabric offers a particularly homogeneous surface with maximum weight savings. Due to the alignment and spread of the carbon fibers in the 0° direction, this fabric is particularly suitable for components that are subjected to bending loads in the longitudinal direction. Fabrics with a lower basis weight naturally also have a lower waviness, as the warp and weft are very thin. They exhibit higher strength than fabrics with a high basis weight.
The copolyamide thread in the weft direction additionally fixes this UD carbon fabric and makes it easier to cut and process.
Construction:
| Weight: | 194 g/m² |
| Weave:: | Twill 3/1 |
| Width: : | 127 cm |
| Warp:: | HT fiber 12K 800 Tex - 2.4Fd/cm spread |
| Weft: | Copolyamide 20Tex - 0.8Fd/cm |
| Finish: | suitable for epoxy, UP, vinyl ester |
Areas of application:
High-strength coatings and thin laminates, aircraft construction, model making, sports equipment construction, boat building, and much more.
Calculated data for hand laminate with 40 volume percent fibres:
Resin consumption: 187 g/m²
Laminate thickness: 0,27 mm
Laminate weight: 381 g/m²
► Laminate calculator
Here you can calculate specific values for the vacuum infusion.
Shipping information for this product:
The running lengths of the rolls vary! Therefore, an item of 10m² or more may consist of several rolls!
Resin consumption: 187 g/m²
Laminate thickness: 0,27 mm
Laminate weight: 381 g/m²
► Laminate calculator
Here you can calculate specific values for the vacuum infusion.
Shipping information for this product:
The running lengths of the rolls vary! Therefore, an item of 10m² or more may consist of several rolls!
Working Notes:
In this instruction you will find tips & tricks to produce carbon-design parts:
Carbon Coating (PDF)
Twill
Satin
In this instruction you will find tips & tricks to produce carbon-design parts:
Carbon Coating (PDF)
Laminate Calculator:
Here you can calculate specific values for different fibers, resins and processes:
Laminate Calculator
Laminate Calculator
Characteristics of Carbon Fabric Constructions:
Carbon Fabrics are available in different constructions. The important characteristics you will find below:
Plain
|
|
Twill
|
|
Satin
|
|
Product Safety (GPSR):
Here you will find information for the safe use of carbon fibres:
Product information for safe handling (PDF)
Here you will find information for the safe use of carbon fibres:
Product information for safe handling (PDF)
