170 g/m² Aramidfabric-Tape Plain (Widht: 10 cm) | HP-P171A/100
170 g/m² Aramidfabric-Tape Plain (Width: 10 cm) | HP-P171A/100
170 g/m² Aramidfabric-Tape Plain (Widht: 10 cm) | HP-P171A/100

170 g/m² Aramidfabric-Tape Plain (Width: 10 cm) | HP-P171A/100

Product No.:
HP-P171A/100
ca. 1-3 days ca. 1-3 days (abroad may vary)
Minimum order:
5
Sliding scale prices
5 Meters
per 6,07 EUR
10-20 Meters
per 5,14 EUR
25-45 Meters
per 4,51 EUR
50-95 Meters
per 4,19 EUR
> 95 Meters
per 3,71 EUR
6,07 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

170 g/m² Aramidfabric-Tape Plain (Width: 10 cm) | HP-P171A/100

Weight: 170 g/m²
Weave: Plain
Width: 10 cm

Yarn type specifications:
Warp: 7 y/cm (Aramid 121 tex)
Weft: 3,5x2 y/cm (Aramid 121 tex)

Technical Data Sheet Carbon Fabric HP-P200C

Areas of application:
Tanks, pipes, profiles, modelling, boat construction, sports equipment making, repair & strengthening, ...

Properties Aramid Fiber:
Aramid fibres are characterized by a high tenacity, a very good impact strength and abrasion resistance. Further properties are e.g. a good dampening ability, excellent chemical resistance and non-flammability.

► Laminate calculator
Here you can calculate specific values for the vacuum infusion.
Working Notes & Support
Laminate Calculator:
Here you can calculate specific values for different fibers, resins and processes:
Laminate Calculator



Characteristics of Aramid Fabric Constructions:

Aramid Fabrics are available in different constructions. The important characteristics you will find below:

Plain
  • The simplest weave
  • Very slip-resistant
  • Bad drapability
  • Suitable for flat plates or easy moulds

Twill
  • Diagonally running lines are characteristic
  • Better drapability than plain weave
  • Less slip-resistant
  • Suitable for complicated geometries

Customers who bought this product bought also the following products:

105 g/m² Peel Ply Twill | HP-T105P100
105 g/m² Peel Ply Twill | HP-T105P100
Weight: 105 g/m²
Weave: Twill
Width: 100 cm
Material: Nylon 6.6
4,17 EUR
180 g/m² Hybrid Fabric Plain Carbon/Kevlar | HP-P180AC
180 g/m² Hybrid Fabric Plain Carbon/Kevlar...
Weight: 180 g/m²
Weave: Plain
Width: 100 cm
26,66 EUR

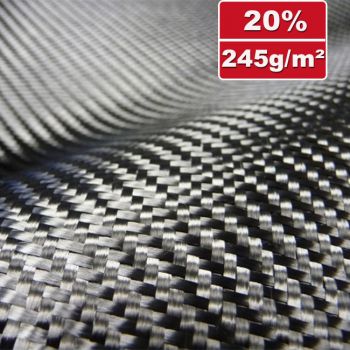

245g/m² carbon fabric, twill, 100cm wide | SP-T240C
