193 g/m² Spread Tow Carbon Fabric Plain | HP-P193C

Product No.:: HP-P193C
Shipping time:: ca. 1-3 days (abroad may vary)
Stock:: m²

Sliding scale prices

1-2,5 m²: per 43,32 EUR
3-4,5 m²: per 39,15 EUR
5-9,5 m²: per 37,37 EUR
10-24,5 m²: per 35,34 EUR
25-49,5 m²: per 33,26 EUR
> 49,5 m²: per 31,24 EUR

43,32 EUR

incl. 19% tax excl. Shipping costs

Description

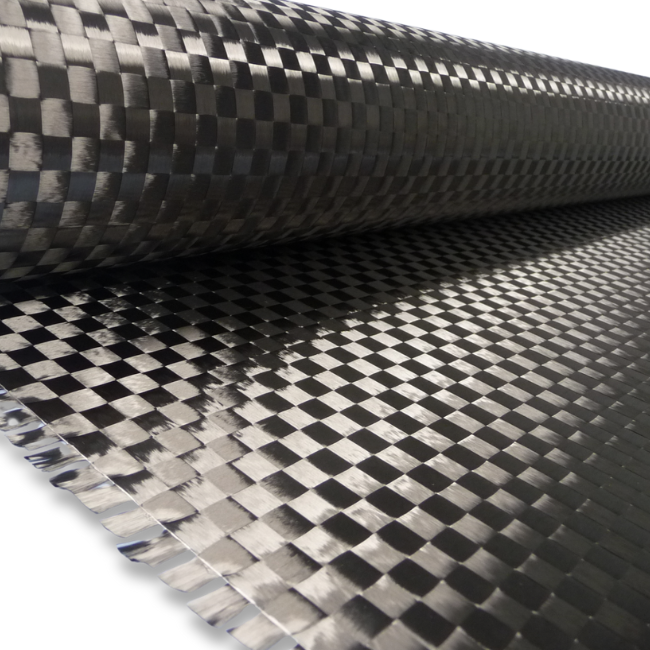

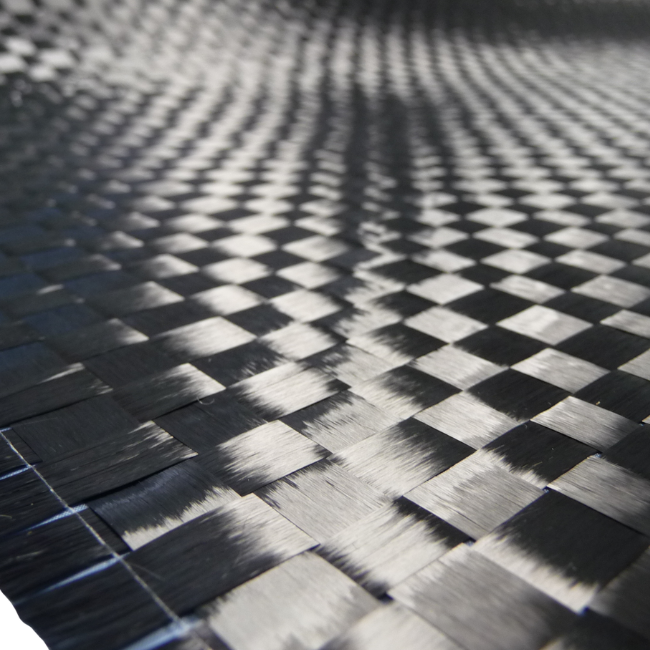

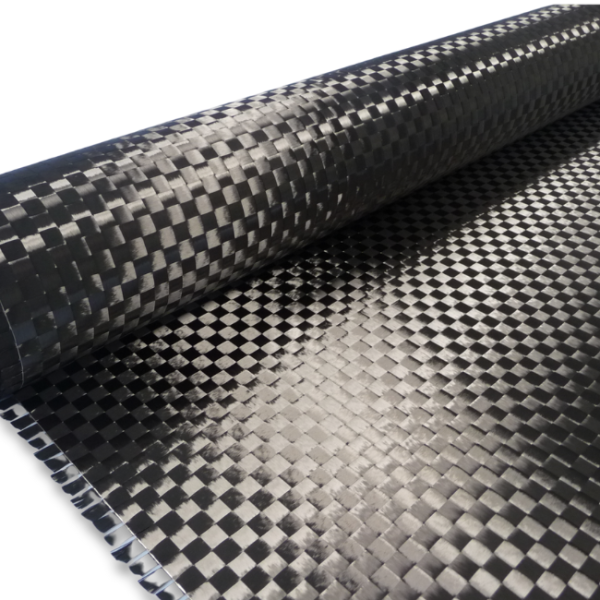

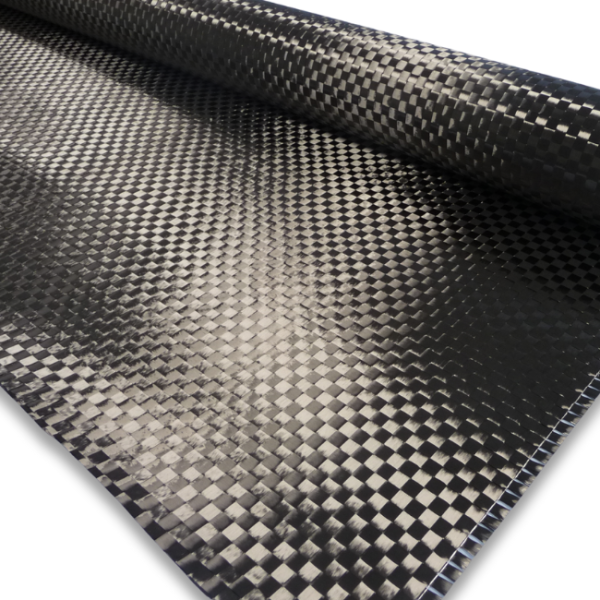

193 g/m² Spread Tow Carbon Fabric Plain | HP-P193C

The Spread-Two-Carbon-Fabric is a fabric with spreaded fibres. It is very thin through the spreading of the single filaments but nevertheless is the fabric very closed. You achieve an increased strength and a lower resin consumption because of the low fibre bending. It is ideal for design applications because of its’ unique carbon look.

Construction: Plain
Weight: 193 g/m²

Width: 127 cm
Fibre: Spread Tow / approx 8,3 mm strand width

Fibre orientation:

Warp:	1,2 y/cm (12K HT-Fibre)
Weft:	1,2 y/cm (12K HT-Fibre)
Thickness:	0,2 mm

Areas of application:

Design application, modelling, sports equipment, carbon design, motor sport, ...

► Laminate calculator
Here you can calculate specific values for your application.

Working Notes & Support

Working Notes:
In this instruction you will find tips & tricks to produce carbon-design parts:
Carbon Coating (PDF)

Laminate Calculator:

Here you can calculate specific values for different fibers, resins and processes:
Laminate Calculator

Characteristics of Carbon Fabric Constructions:

Carbon Fabrics are available in different constructions. The important characteristics you will find below:

Plain

The simplest weave
Very slip-resistant
Bad drapability
Suitable for flat plates or easy moulds

Twill

Diagonally running lines are characteristic
Better drapability than plain weave
Less slip-resistant
Suitable for complicated geometries

Satin

Suitable for complicated geometries
Very good drapability
Low slip-resistance
Less mesh crossing, therefore strength in the laminate
Leaves a very smooth surface

Product Safety

Product Safety (GPSR):
Here you will find information for the safe use of carbon fibres:
Product information for safe handling (PDF)
