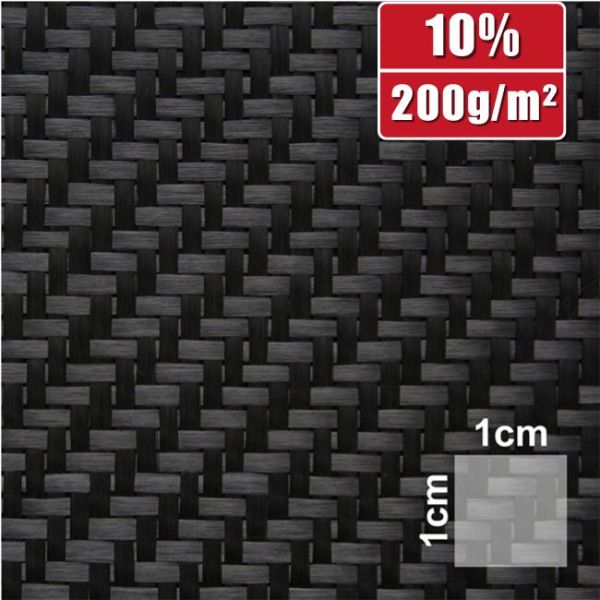

Carbon Fabric 200 g/m² Twill | HP-T200/120C
Carbon Fabric 200 g/m² Twill | HP-T200/120C
Preview: Carbon Fabric 200 g/m² Twill | HP-T200/120C
Preview: Carbon Fabric 200 g/m² Twill | HP-T200/120C
200 g/m² Carbon Fabric Twill | HP-T200/120C
Carbon Fabric 200 g/m² Twill | HP-T200/120C
Carbon Fabric 200 g/m² Twill | HP-T200/120C
Mobile Preview: Carbon Fabric 200 g/m² Twill | HP-T200/120C
Mobile Preview: Carbon Fabric 200 g/m² Twill | HP-T200/120C

200 g/m² Carbon Fabric Twill | HP-T200/120C

Product No.:
HP-T200/120C
ca. 1-3 days ca. 1-3 days (abroad may vary)
Sliding scale prices
1-2,5 m²
per 27,89 EUR
3-4,5 m²
per 25,99 EUR
5-9,5 m²
per 24,69 EUR
10-24,5 m²
per 23,50 EUR
25-49,5 m²
per 21,90 EUR
50-119,5 m²
per 19,85 EUR
> 119,5 m²
per 18,98 EUR
27,89 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

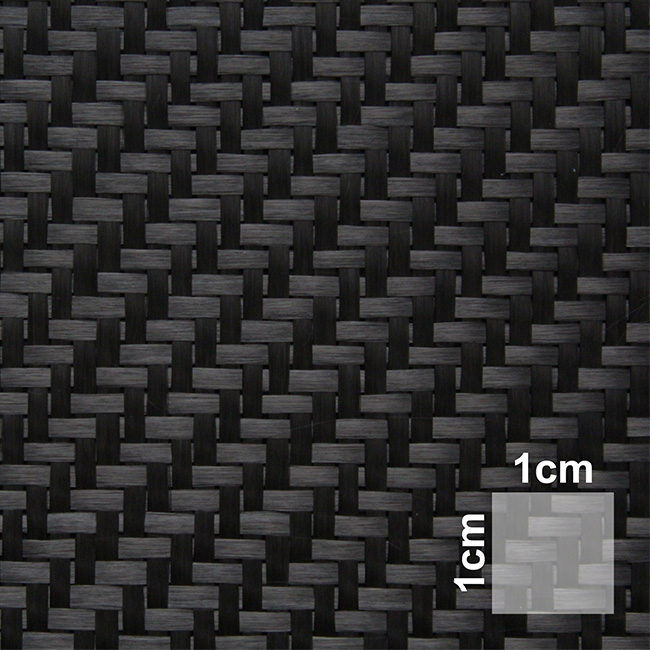

Carbon Fiber Fabric Twill | HP-T200/120C

Weight: 200 g/m²
Weave: Twill 2/2
Width: 120 cm
Yarn: Hexcel AS4C 3K

Yarn type specifications:
Warp: 5 y/cm (3K  200Tex)
Weft: 5 y/cm (3K  200Tex)
Thickness: 0,32 mm

** The length of the rolls may vary. Therefore it is possible that a position from 10 m² consists of several rolls. **

Technical Data Sheet Carbon Fabric HP-T200C

Areas of application:
Modelling, sport equipment making, ship and boat construction, motor sport, carbon design, ...

Calculated data for hand laminate with 35 volume percent fibres:
Resin consumption: 240 g/m²
Laminate thickness: 0,32 mm
Laminate weight: 440 g/m²

► Laminate calculator
Here you can calculate specific values for the vacuum infusion.
Working Notes & Support

Working Notes:
In this instruction you will find tips & tricks to produce carbon-design parts:
Carbon Coating (PDF)


Laminate Calculator:
Here you can calculate specific values for different fibers, resins and processes:
Laminate Calculator



Characteristics of Carbon Fabric Constructions:

Carbon Fabrics are available in different constructions. The important characteristics you will find below:

Plain
  • The simplest weave
  • Very slip-resistant
  • Bad drapability
  • Suitable for flat plates or easy moulds

Twill
  • Diagonally running lines are characteristic
  • Better drapability than plain weave
  • Less slip-resistant
  • Suitable for complicated geometries

Satin
  • Suitable for complicated geometries
  • Very good drapability
  • Low slip-resistance
  • Less mesh crossing, therefore strength in the laminate
  • Leaves a very smooth surface
Product Safety
Product Safety (GPSR):
Here you will find information for the safe use of carbon fibres:
Product information for safe handling (PDF)
