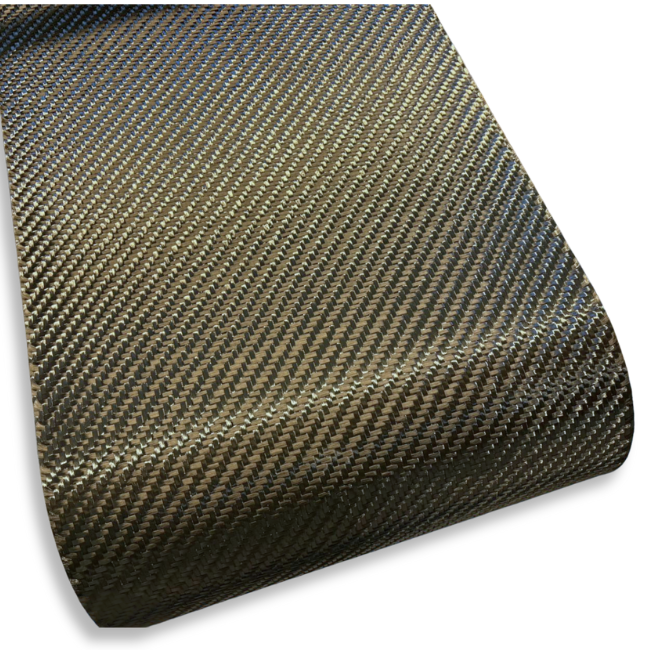

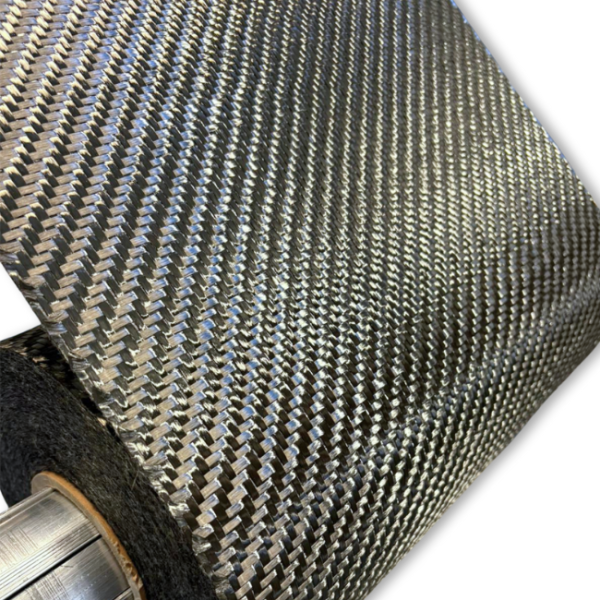

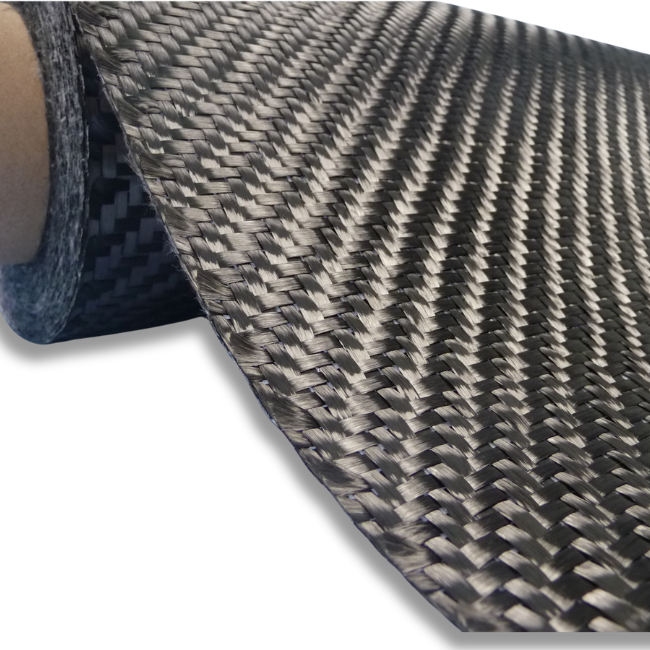

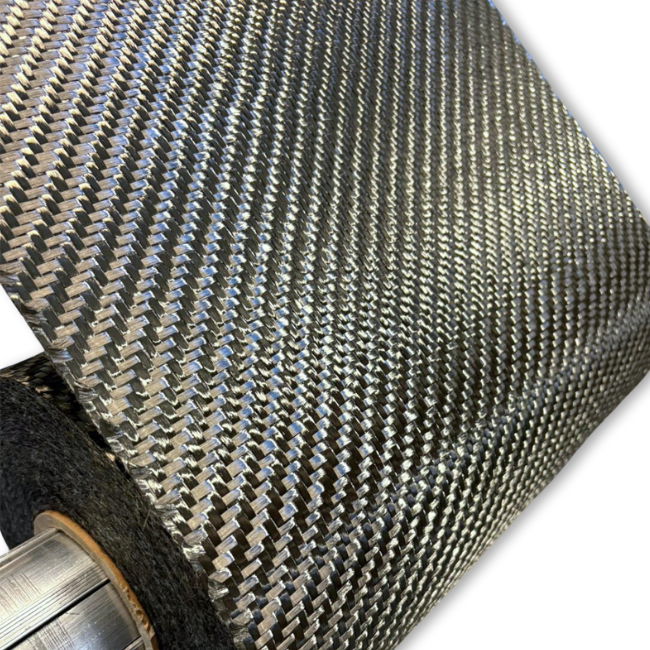

Carbon fiber fabric approx. 450g/m² twill 2/2 non-slip / PES fleece | SP-T421CPES
** Special item from larger industrial production **

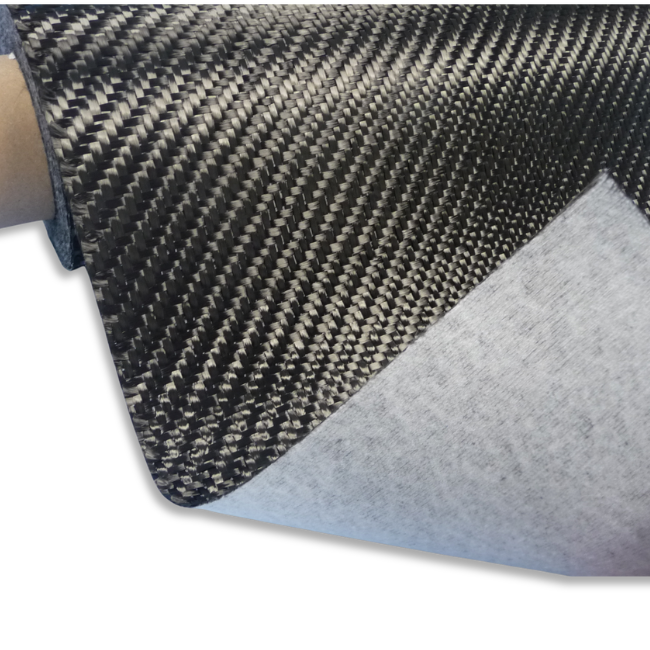

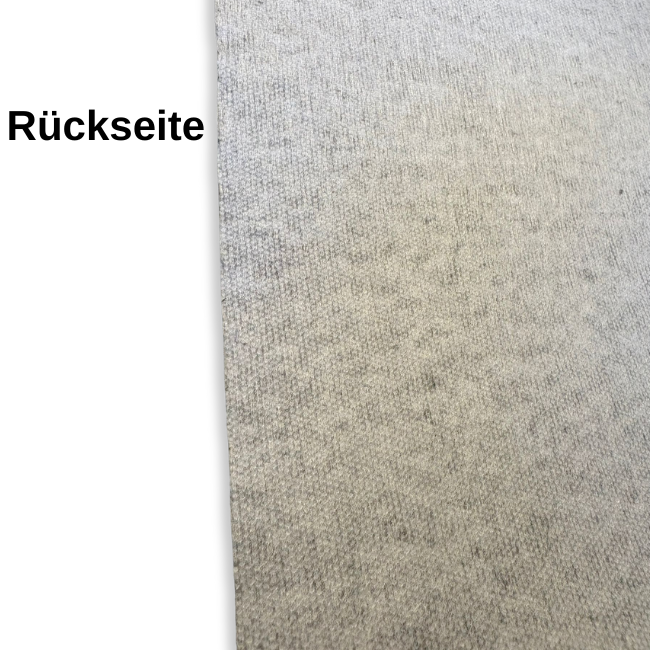

This carbon fabric is equipped with a polyester fleece on one side.
Advantages: No fraying or shifting when cutting to size
Construction:
Weight: 450 g/m²
Weave: Twill 2/2
Width: 42 cm
Warp: 2.5 Fd/cm (12K 800Tex)
Weft: 2.5 Fd/cm (12K 800Tex)
This carbon fabric is equipped with a polyester fleece on one side.
Advantages: No fraying or shifting when cutting to size
Construction:
Weight: 450 g/m²
Weave: Twill 2/2
Width: 42 cm
Warp: 2.5 Fd/cm (12K 800Tex)
Weft: 2.5 Fd/cm (12K 800Tex)
Areas of application:
Ship and boat building, motor sports, sports equipment, aircraft construction, model making ...
Calculated data for hand laminate with 35 volume percent fibres:
Resin consumption: 540 g/m²
Laminate thickness: 0,72 mm
Laminate weight: 990 g/m²
► Laminate calculator
Here you can calculate specific values for the vacuum infusion.
** The length of the rolls may vary. Therefore it is possible that a position of 10m² or more consists of several rolls. **
Resin consumption: 540 g/m²
Laminate thickness: 0,72 mm
Laminate weight: 990 g/m²
► Laminate calculator
Here you can calculate specific values for the vacuum infusion.
** The length of the rolls may vary. Therefore it is possible that a position of 10m² or more consists of several rolls. **
Working Notes:
In this instruction you will tips & tricks to produce carbon-design parts:
Carbon Coating (PDF)
Laminate Calculator:
Here you can calculate specific values for different fibers, resins and processes:
Laminate Calculator
Laminate Calculator
Characteristics of Carbon Fabric Constructions:
Carbon Fabrics are available in different constructions. The important characteristics you will find below:
Plain
|
|
Twill
|
|
Satin
|
|
Product Safety (GPSR):
Here you will find information for the safe use of carbon fibres:
Product information for safe handling (PDF)
Here you will find information for the safe use of carbon fibres:
Product information for safe handling (PDF)
