163 g/m² Glass Fabric "Finish" Plain | HP-P163EF

Name: 163 g/m² Glass Fabric "Finish" Plain | HP-P163EF
SKU: HP-P163EF
Price: 6.55 EUR
Availability: InStock

Product No.:: HP-P163EF
Shipping time:: ca. 1-3 days (abroad may vary)
Stock:: m²

Sliding scale prices

1-2,9 m²: per 6,55 EUR
3-4,9 m²: per 6,28 EUR
5-9,9 m²: per 6,02 EUR
10-24,9 m²: per 5,50 EUR
25-49,9 m²: per 4,97 EUR
50-99,9 m²: per 4,45 EUR
> 99,9 m²: per 3,80 EUR

6,55 EUR

incl. 19% tax excl. Shipping costs

m²:

Add to wish list

Ask about product

Description

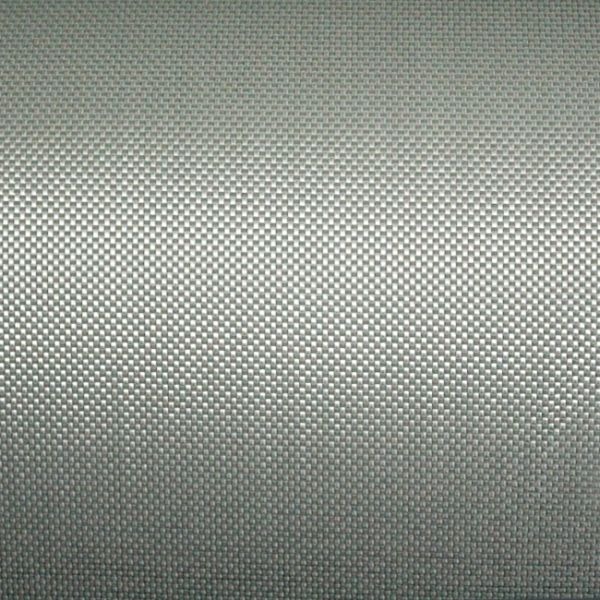

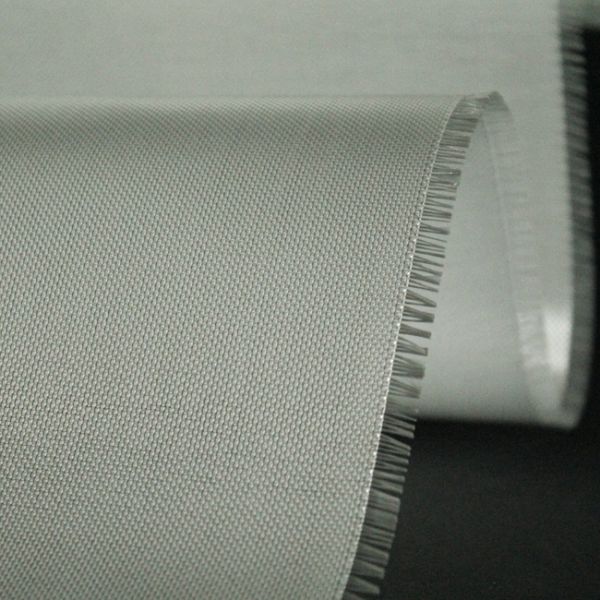

Glass Fiber Fabric Finish Plain | HP-P163EF

Weight: 163 g/m²
Weave: Plain
Sizing: Finish
Width: 100 cm

Yarn type specifications:
Warp: 11,8 y/cm (EC9-68 tex)

Weft: 12 y/cm (EC9-68 tex)

Areas of application:

Design of models-, sport equipment, boat-, tank- and mould construction, car-parts, ...

Calculated data for hand laminate with 35 volume percent fibres:
Resin consumption: 136 g/m²
Laminate thickness: 0,18 mm
Laminate weight: 302 g/m²

► Laminate calculator
Here you can calculate specific values for the vacuum infusion.

Delivery notes for this product:

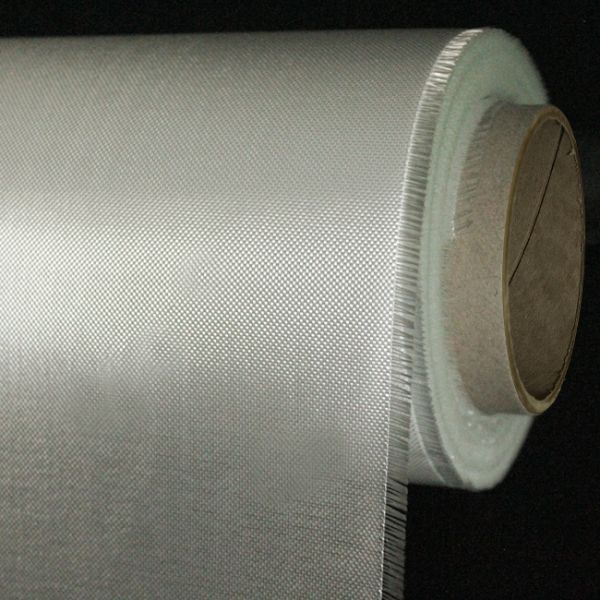

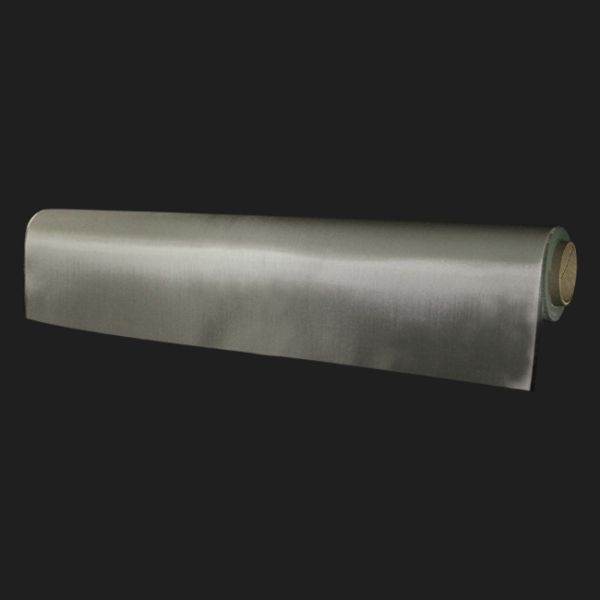

Delivery up to 2,5 m² only folded up. More than 3 m² only on roll.

Working Notes & Support

Working Notes:
In this instruction you will find tips & tricks by working with glass fiber fabrics and epoxy resins:
Boat Building (PDF)

Laminate Calculator:

Here you can calculate specific values for different fibers, resins and processes:
Laminate Calculator

Characteristics of Glass Fabric Constructions:

Glass Fabrics are available in different constructions. The important characteristics you will find below:

Plain

The simplest weave
Very slip-resistant
Bad drapability
Suitable for flat plates or easy moulds

Twill

Diagonally running lines are characteristic
Better drapability than plain weave
Less slip-resistant
Suitable for complicated geometries

Satin

Suitable for complicated geometries
Very good drapability
Low slip-resistance
Less mesh crossing, therefore strength in the laminate
Leaves a very smooth surface
