200 g/m² Carbon Fabric Twill 2/2 Spread Tow | HP-T201SC

Mobile Preview: 160 g/m² Spread Tow Carbon Fabric Plain - 3K-Fibre | HP-P161SC

200 g/m² Carbon Fabric Twill 2/2 Spread Tow | HP-T201SC

Product No.:: HP-T201SC
Shipping time:: ca. 1-3 days (abroad may vary)
Stock:: 248.5 m²

Sliding scale prices

1-2,5 m²: per 34,45 EUR
3-4,5 m²: per 32,73 EUR
5-9,5 m²: per 30,82 EUR
10-24,5 m²: per 28,92 EUR
25-49,5 m²: per 27,95 EUR
50-130,5 m²: per 26,42 EUR
> 130,5 m²: per 25,64 EUR

34,45 EUR

incl. 19% tax excl. Shipping costs

Description

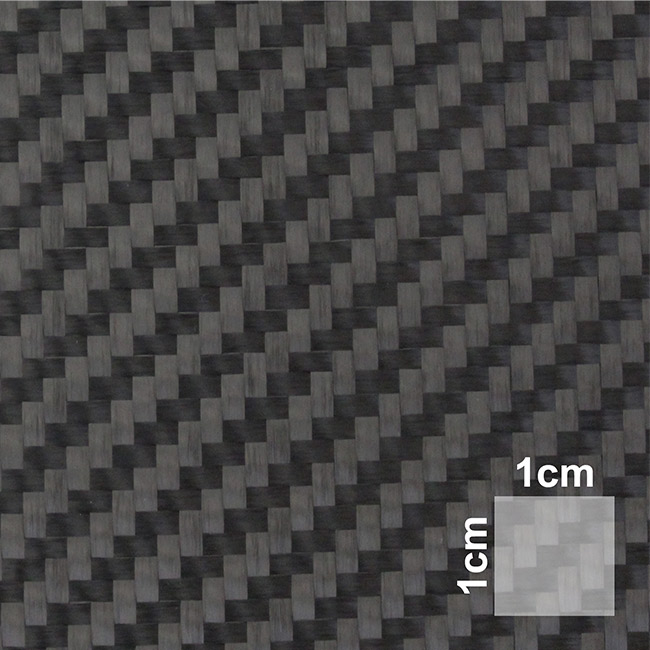

200 g/m² Carbon Fabric Twill 2/2 Spread Tow | HP-T201SC

This Spread-Two-Carbon-Fabric is a fabric with a standard 3K spreaded fibres. It is very thin through the spreading of the single filaments but nevertheless is the fabric very closed. You achieve an increased strength and a lower resin consumption because of the low fibre bending. It is ideal for design applications because of its’ unique carbon look.

Construction: Twill 2/2

Weight: 200 g/m²

Width: 125 cm
Fibre: Spread Tow / approx 2 mm strand width

Fibre orientation:

Warp:	5 y./cm (3K 200 Tex / HT-Fibre)
Weft:	5 y./cm (3K 200 Tex / HT-Fibre)
Thickness:	0,32 mm
Yarn:	Hexcel AS4C-3K

Areas of application:

Design application, modelling, sports equipment, carbon design, motor sport, ...

► Laminate calculator
Here you can calculate specific values for your application.

Working Notes & Support

Working Notes:
In this instruction you will find tips & tricks to produce carbon-design parts:
Carbon Coating (PDF)

Laminate Calculator:

Here you can calculate specific values for different fibers, resins and processes:
Laminate Calculator

Characteristics of Carbon Fabric Constructions:

Carbon Fabrics are available in different constructions. The important characteristics you will find below:

Plain

The simplest weave
Very slip-resistant
Bad drapability
Suitable for flat plates or easy moulds

Twill

Diagonally running lines are characteristic
Better drapability than plain weave
Less slip-resistant
Suitable for complicated geometries

Satin

Suitable for complicated geometries
Very good drapability
Low slip-resistance
Less mesh crossing, therefore strength in the laminate
Leaves a very smooth surface
